More Details

Voltage range5 to 12 Volts
Turn on Voltage5 Volts
Cut off voltage for LithiumAutomatic
Number of Lithium Cells2 or 3 Cells
Current rating4 Amps
PWM rate95 KC
BEC rating1 Amp at 5 Volts
Length1 inch
Width3/8 inch
Height1/8 inch
Weight2 grams
Servo ConnectorUniversal
Power Cables24 gage
Power ConnectorsDeans 2 pin Micro

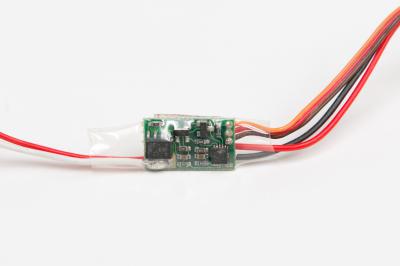

This control is designed for coreless motors. It is rated at 4 amps so it can handle 4 firefly motors. It can also be used with other coreless motors like the DC-5 and 1717 and std motors like the GWS series.


Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.


Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
