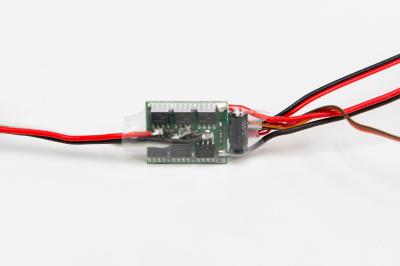

201 SENSORLESS CONTROL FOR 010 BRUSHLESS MOTORS More Details
|Voltage range||6 to 12 Volts|
|Turn on Voltage||5 Volts|
|Cut off voltage for Lithium||Automatic|
|Number of Lithium Cells||2 or 3 Cells|
|Current rating||10 Amps|
|PWM rate||11 KC|
|Programmable Brakes||Brakes on or off|
|BEC rating||1 Amp at 5 Volts|
|Power Cables||20 Gage|
|Power Connectors||Deans 2 pin Micro|
This control is designed for the Astro 010 brushless motor. It is rated at 10 amps so it can handle any other brushless motors requiring up to 10 amps and running on 6 to 12 volts.
