More Details

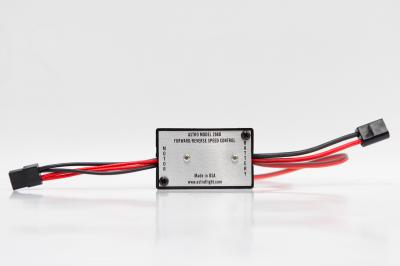

Reversing Speed Control with bec and Astro Connectors

Voltage range 6 to 26 Volts
Turn on Voltage 6 Volts
BEC Cut off voltage 6 volts
Number of Nicad or NIMH Cells 6 to 12 Cells
Continuous Current Rating 35 Amps
PWM rate 3 KC
BEC rating 1 Amp at 5 Volts
Length 2.5 inches
Width 1 inch
Height 1/4 inch
Weight 40 grams
Servo Connector Universal
Power Cables 13 gauge



Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.


Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
