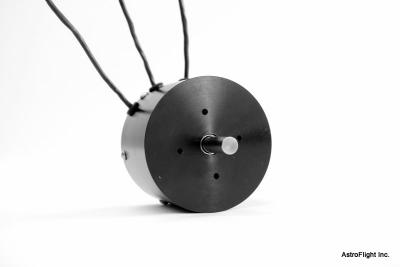

3210 ASTRO BRUSHLESS MOTOR


$470.00
Quantity

More Details

The 3210 is the second smallest motor in the 32XX line. It is capable of 2KW and weighs approximately 2.35 lbs.



Superior Quality



The goal with the 32XX has been to create a superior quality motor. Starting at the core of the motor, the 32XX uses the highest grade of sintered samarium-cobalt magnet. This is a very high quality magnet that is rarely found on motors of this price point. Typically manufacturers use neodymium or ferrite magnets to cut costs but they tend to demagnetize in use. AstroFlight has chosen samarium-cobalt for its high magnetic strength, high temperature capability and virtually zero demagnetization susceptibility. Around the magnetic rotor are high grade ultra-thin annealed stator laminations that ensure low eddy-current and hysteresis losses. To handle high continuous and burst power, every component from the epoxies to the wire insulation has been rated to at least 200°C. Finally, to ensure manufacturing quality, all 32XX motors are designed and manufactured in AstroFlight's facility in Irvine, CA. The design, high quality materials, and manufacturing precision allows the 32XX motors to have a power-to-weight ratio two to the three times that of its competition.



Support and Customization



One of the key features that makes AstroFlight unique is its ability to tailor motors to customers' needs. Since the 32XX motors are built to order and manufactured in-house, customers can request different housings, cooling configurations, shafting, and turn count. The engineering team can assist customers with proper motor selection and customization options.




Quiet and Efficient Performance



The 32XX's stator design and magnetic topology has been designed to produce a very clean trapezoidal back EMF which nearly matches standard square-wave brushless controllers. This makes for nearly silent operation and prevents damage to the controller and power supply.



All these factors allow the 32XX motors to achieve a peak efficiency as high as 94%. Furthermore, the motors maintain their high efficiency over a wide range of voltage and current values. This makes the 32XX flexible in customers' systems.


Please see the PDF below for more information.



CUSTOM OPTIONS FOR THE 3210:


Shaft Length

The standard 3210 has 1.8" of shaft protruding from the front face and flush on the back. Customers may specify the amount of shaft length protruding from both sides of the motor.




Temperature Sensor

An optional temperature sensor may be installed into the motor. This temperature sensor is embedded in the coil windings and has a temperature range from -40 to 300 Celsius (-40F to 572F).



Ported Housing

The standard 3210 has a sealed can to protect against environmental elements like dust and dirt. However, we also offer a ported housing option that has large cut-aways in the front and rear faces of the motor to allow better convective cooling of the end turns.








Stock number P/N 3210
Typical Winding 5 Turns
Speed Constant 275 rpm/volt
Torque Constant 5 inch ounces/amp
Winding Resistance 30 milliohms
No Load Current 1 amp
Max Continuous Amps 75 amps
Peak Amps 1 minute 100 Amps
Typical Voltage Range 12 to 48 volts
Typical Power Range 2,000 to 3,000 watts
Typical Efficiency Range 90 to 95%
Typical Speed Range 6,000 to 10,000 Rpm
Stator 24 slot 8 pole winding
Rotor 8 pole Sm Cobalt
Bearings Two Ball Bearings
Motor Diameter 3.2 inches
Motor Length 2 inches
Motor Weight 34 oz.
Motor Shaft 3/8 inch diameter



For an explanation of motor terminology and parameters, please click here.

Warranty

Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.

Returns

Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
