3220 ASTRO BRUSHLESS MOTOR

3220 ASTRO BRUSHLESS MOTOR

$695.00

Quantity:

More Info

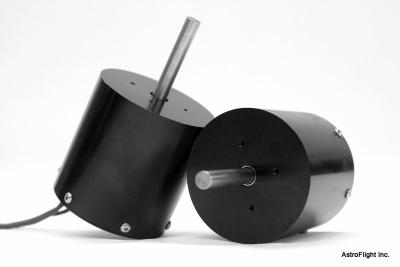

Capable of 4KW, the 3220 is the largest motor in the 32XX line. The 3220 also comes with the option of a 1/2" diameter shaft and large diameter bearings for increased durability. The 3220 weighs approximately 4 lbs.

Superior Quality


The goal with the 32XX has been to create a superior quality motor. Starting at the core of the motor, the 32XX uses the highest grade of sintered samarium-cobalt magnet. This is a very high quality magnet that is rarely found on motors of this price point. Typically, manufacturers use neodymium or ferrite magnets to cut costs, but they tend to demagnetize in use. Astro Flight has chosen samarium-cobalt for its high magnetic strength, high temperature capability and virtually zero demagnetization susceptibility. Around the magnetic rotor are high grade ultra-thin annealed stator laminations that ensure low eddy-current and hysteresis losses. To handle high continuous and burst power, every component from the epoxies to the wire insulation has been rated to at least 200°C. Finally, to ensure manufacturing quality, all 32XX motors are designed and manufactured in Astro Flight's facility in Irvine, CA. The design, high quality materials, and manufacturing precision allows the 32XX motors to have a power-to-weight ratio two to the three times that of its competition.

Support and Customization


One of the key features that makes AstroFlight unique is its ability to tailor motors to customers' needs. Since the 32XX motors are built to order and manufactured in-house, customers can request different housings, cooling configurations, shafting, and turn count. The engineering team can assist customers with proper motor selection and customization options.

Quiet and Efficient Performance


The 32XX's stator design and magnetic topology has been designed to produce a very clean trapezoidal back EMF which nearly matches standard square-wave brushless controllers. This makes for nearly silent operation and prevents damage to the controller and power supply.

All these factors allow the 32XX motors to achieve a peak efficiency as high as 94%. Furthermore, the motors maintain their high efficiency over a wide range of voltage and current values. This makes the 32XX flexible in customers' systems.

One may use a high voltage controller like the Castle Creations HV85 or HV110.



CUSTOM OPTIONS FOR THE 3220

Shaft Diameter

The standard 3220 shaft is 3/8" in diameter. We also offer a 1/2" version which includes larger diameter bearings for less rolling resistance.

Shaft Length

The standard 3220 has 1.8" of the shaft protruding from the front face and flush on the back. Customers may specify the amount of shaft length protruding from both sides of the motor.

Temperature Sensor

An optional temperature sensor may be installed into the motor. This temperature sensor is embedded in the coil windings and has a temperature range from -40 to 300 Celsius (-40°F to 572°F).

Ported Housing

The standard 3220 has a sealed can to protect against environmental elements like dust and dirt. However, we also offer a ported housing option that has large cut-aways in the front and rear faces of the motor to allow better convective cooling of the end turns.


Stock Number
P/N 3220
Winding
5 Turns
Speed Constant
137 rpm/volt
Torque Constant
10 inch ounces/amp
Winding Resistance
50 milliohms
No Load Current
1 amp
Max Continuous Amps
75 amps
Peak Amps 1 minute
100 Amps
Typical Voltage Range
24 to 80 volts
Typical Power Range
4,000 to 6,000 watts
Typical Efficiency Range
90 to 95%
Typical Speed Range
6,000 to 10,000 Rpm
Stator
24 slot, 8 pole winding
Rotor
8 pole Sm Cobalt
Bearings
Two Ball Bearings
Motor Diameter
3.2 inches
Motor Length
3.4 inches
Motor Weight
4 lb.
Motor Shaft 3/8 inch diameter



For an explanation of motor terminology and parameters, please click here.



Warranty

Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.
