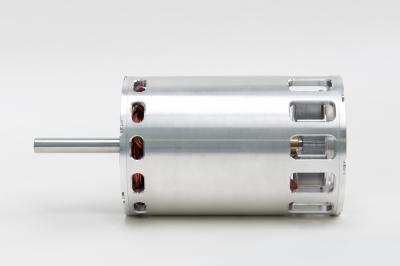

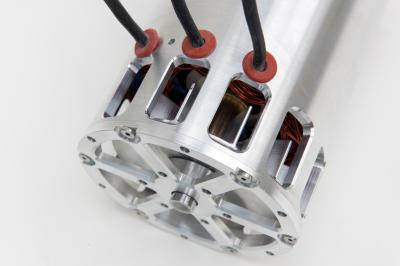

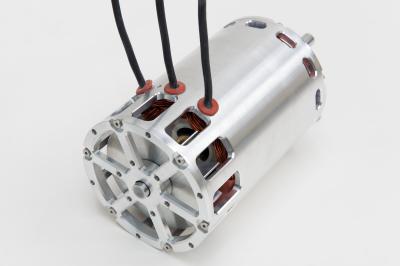

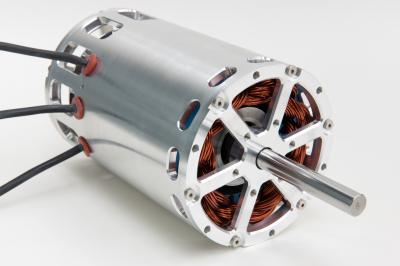

4535 ASTRO BRUSHLESS MOTOR


$2,995.00

More Details

*Please note that the 4535 motor is built to order. Please contact Astro Flight at info@astroflight.com or (949)855-9903 regarding purchasing this motor.*

Capable of 15KW, the 4535 is the newst and largest motor in Astro Flight's lineup. This 12 pound motor is intended for applications where power-to-weight is of the utmost importance.




High Power, High Quality

The purpose of the development of the 4535 was to deliver the same quality and reliability of our 32XX motors, but at nearly 4x the power. Starting at the core of the motor, the 4535 uses the highest grade of sintered samarium-cobalt magnet. Unlike hobby grade neodymium magnets, these samarium-cobalt magnets are able to withstand high operating temperatures without losing magnetic strength or experiencing permanent demagnetization. Ultra-thin laminations are used in the stator to ensure minimal iron losses and maximize efficiency. All components of the motor are rated to at least 200°C to handle high continuous and burst power. Finally, to ensure manufacturing quality, all 4535 motors are designed and manufactured in Astro Flight's facility in Irvine, CA.

Support and Customization

One of the key features that makes Astro Flight unique is its ability to tailor motors to customers' needs. Since the 4535 motors are built to order and manufactured in-house, customers can request different housings, cooling configurations, shafting, and turn count. The engineering team can assist customers with proper motor selection and customization options.

Quiet and Efficient Performance

The 4535 stator design and magnetic topology produces a very clean trapezoidal back EMF while also eliminating cogging. This makes for quiet and efficient operation as well as an easy start.

The careful design and manufacturing of the 4535 allows it to achieve a peak efficiency as high as 94% and maintain a high efficiency over a wide range of voltage and current values. This makes the motor suitable for a wide variety of applications.

CUSTOM OPTIONS FOR THE 4535:

Shaft Diameter
The standard 4535 shaft is 1/2" in diameter. We also offer a 12mm version.

Shaft Length
The standard 4535 has 2" of shaft protruding from the front face and flush on the back. Customers may specify the amount of shaft length protruding from both sides of the motor.

Temperature Sensor
An optional temperature sensor may be installed into the motor. This temperature sensor is embedded in the coil windings and has a temperature range from -40 to 300 Celsius (-40F to 572F).

Enclosed Housing
The standard 4535 housing has porting in the front and rear and has a fan ducting air through the entire system. A fully enclosed housing is available for applications in harsh environments with dust and dirt or when there is little airflow over the motor

Custom Sizing
The 4535 can be scaled up or down to fit your application and power requirements.



The 4535's dimensions are approximately 4.5" diameter and 7" length and the motor weighs approximately 12 pounds.



For an explanation of motor terminology and parameters, please click here.



Warranty

Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.

Returns

Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
