801lm

801LM-10T 010 (MOTOR ONLY)


$89.83
Quantity

More Details

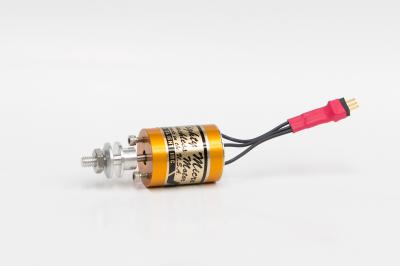

Astro Micro 010 motor 10T This is a new motor and is designed to replace the 14 turn

***MOTOR ONLY***

Motorp/n 801LM-10t
Stator Winding10 Turns
Rpm/Volt 2500 rpm/ volt
Winding Resistance 0.135 ohms
No Load Current 600ma
Rotor magnetssmall cobalt
Max amps15 amps
Max Power 150 watts
BearingsBall Bearings
Motor Length1.30 inches
Motor Diameter0.98 inches
Motor Weight 56 grams
Motor Shaft Diameter1/8 inch
Drive Adaptor 3/16 inch
Max Continuous Amps10 amps

For an explanation of motor terminology and parameters, please click here.

Warranty

Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.

Returns

Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
