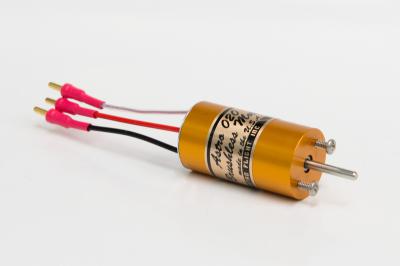

803T ASTRO 020 T-REX HELICOPTER MOTOR


$99.70
Quantity

More Details

Specially Designed for T-REX and Shogun Helicopters

Motor 803-T-REX
Winding 4 turns #19
RPM/volt 3330 rpm/v
Resistance 0.049 ohms
No load current 900 ma
Rotor Magnets Sm Cobalt
Bearings Ball Bearings
Motor Dia 0.98 inches
Length 1.75 inches
Weight:Motor,screws,wire,astro connectors 3.3 oz
Motor shaft 1/8 inch dia
Mounting screws 2-440
Screw Spacing 5/8 inch
Control Type Sensorless
Connectors Astro 3 pin #521
Servo Connector Universal
Nimh battery 8 cells
Lithium 3 cells
Maximum Power 300 watts


For an explanation of motor terminology and parameters, please click here.
