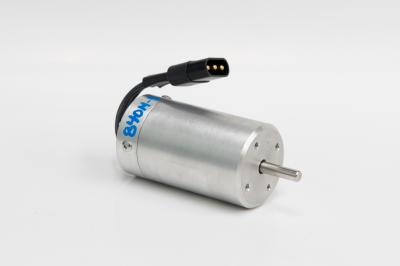

840M-4T ASTRO 40 BRUSHLESS MOTOR

840M-4T ASTRO 40 BRUSHLESS MOTOR

$202.18

Quantity:

More Info

• Power of a 40 Glow Motor, over 1,000 watts.
• Spins 10 inch APC Prop at 12,000 Rpm on 4 cells.
• Small size only 1.3 inches dia. and 2.5 inches long
• Robust and lightweight, only 8.7 ounces (250 grams).
• Powerful four pole SMCO rotor will never demag.
• Special 12 slot stator for smooth running and high torque.
• Silicon steel laminations for highest efficiency
• Runs on three to five Lithium Polymer cells.
• Can handle up to 45 Amps current draw.
• Requires 45 amp high voltage sensorless control.
• Perfect for 6 to 10 pound sport scale models.
• Always Handcrafted in Irvine, California U.S.A.



Winding
4 turns, #17
Speed Constant Kv
1360 rpm/volt
Resistance
43 milliohms
No Load Current
1,200 ma
Rotor Magnets
Sm Cobalt
Bearings
Ball Bearings
Motor Diameter
1.35 inches
Motor Length
2.50 inches
Motor Weight
8.7 ounces
Motor Shaft Diameter
5 mm dia
Torque Constant Kt
1 in-oz/Amp
Best Efficiency @ 18.5V
90% @ 25 Amps
Max Continuous Amps
45 Amps
Maximum Amps 30 sec Burst
60 Amps
Maximum Power 1000 watts



For an explanation of motor terminology and parameters, please click here.
