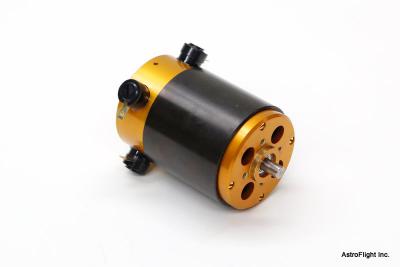

960 COBALT 60 DIRECT DRIVE MOTOR More Details
|Model No.||p/n 960|
|Armature Winding||13 turns|
|Armature Resistance||0.130 ohms|
|Magnet Type||Sm Cobalt|
|Motor Speed /volt||288 rpm/volt|
|Motor Torque/amp||4.7 in-oz /amp|
|Voltage Range||24 to 42 volts|
|No Load Currrent||2.3 amps|
|Maximum Continuous Current||25 amps|
|Maximum Continuous Power||1,200 watts|
|Motor Length||3.0 inches|
|Motor Diameter||2.1 inches|
|Motor Shaft Diameter||0.25 inches|
|Motor Weight||22 oz|
For an explanation of motor terminology and parameters, please click here.
